Picking out a Power Station Transformer isn't just about buying some equipment — it's a serious decision that’s all about long-term reliability. These transformers have to handle all sorts of stuff: voltage fluctuations, increasing loads, sudden short-circuits, cooling limits, and tough on-site conditions. It’s a big deal, and the stakes are pretty high.

According to the International Energy Agency’s Electricity 2024 report, we’re looking at around 3.4% yearly growth in global electricity demand from 2024 to 2026. That kind of growth really ramps up the pressure on power generation and transmission assets. And, on top of that, the U.S. Department of Energy’s 2022 review on the electric grid supply chain points out that it takes a while to get big transformers, mostly because manufacturing is pretty concentrated. If you don’t plan well and delay replacements, your power station might end up running with pretty limited options — something you definitely want to avoid.

Thomas A. Prevost, an expert in IEEE transformer standards, once said, “The transformer is the most expensive single piece of equipment in a substation.” And he’s right — don’t be fooled by a low price tag. Sometimes, that’s hiding weak testing results, little spare parts, or poor cooling performance. Engineers need to look beyond just the purchase price — they should evaluate the total ownership cost. Things like IEC 60076 compliance, IEEE C57.12.00 standards, factory tests, insulation quality, oil condition, noise levels, and how transport is handled all matter. Even a few millimeters of clearance during installation or missing temperature alarms can make a difference.

Of course, no checklist is perfect — site info might be incomplete, and future demands could change. But sticking to a solid, disciplined selection process can help cut down on a lot of unnecessary headaches. The right Power Station Transformer should fit the current demands, planned upgrades, maintenance needs, and environmental conditions of your station. Remember, good reliability starts way before the transformer is even manufactured.

How to Choose a Power Station Transformer?
Table of Contents [Hide]
1 Define the Role and Operating Conditions of the Power Station Transformer
2 Determine the Required Capacity, Voltage Levels, and Load Profile
3 Compare Transformer Designs, Cooling Methods, and Insulation Systems
4 Evaluate Efficiency, Reliability, Safety, and Environmental Performance
5 Check Site Conditions, Grid Standards, Protection, and Maintenance Needs
6 Assess Suppliers, Total Cost, Delivery Requirements, and Lifecycle Value

Define the Role and Operating Conditions of the Power Station Transformer

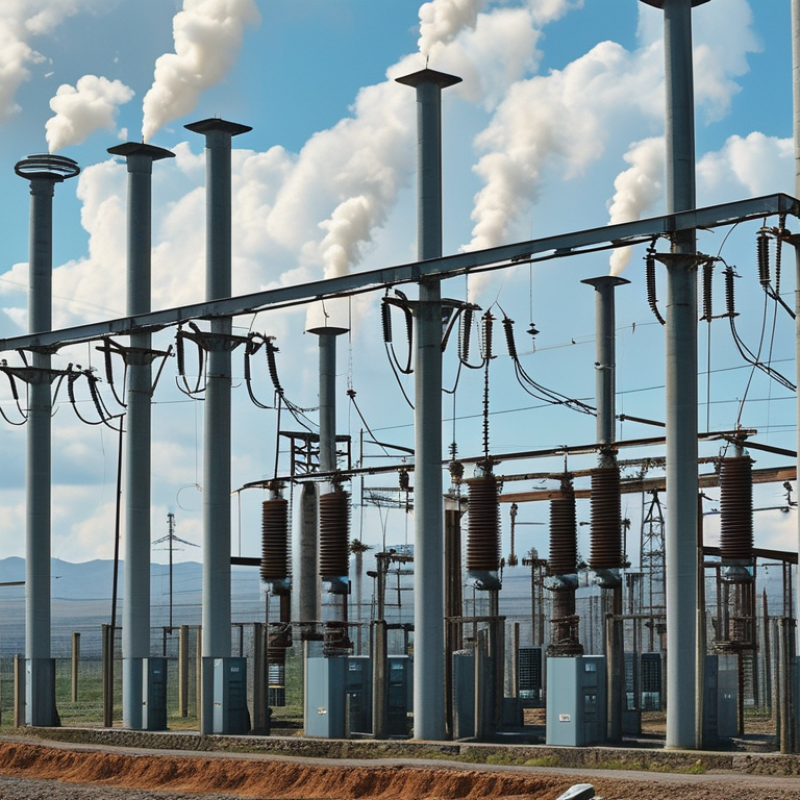

How to Choose a Power Station Transformer?

Define the Role and Operating Conditions of the Power Station Transformer

Choosing a power station transformer starts with its role, not its nameplate size. In a Power Transformer Station, it may raise generator voltage for transmission or reduce voltage for auxiliary loads. That duty defines insulation level, rated power, tap range, and fault withstand requirements. A unit serving steady base load behaves differently from one following fluctuating renewable output. Keep the operating picture realistic. A neat specification can still be wrong.

Review generator voltage, grid connection, short-circuit level, load profile, and expected expansion. Record ambient temperature, altitude, humidity, dust, and cooling-water conditions. These details influence thermal margins and enclosure design. During site assessments, engineers should check blocked air paths, crane access, and oil containment space. Small omissions become expensive during commissioning. They also complicate routine maintenance. Protection coordination must match transformer impedance and upstream breakers. Do not treat these values as paperwork.

Select cooling equipment for actual peaks, not an optimistic average. Confirm noise limits, fire separation, earthing, bushings, surge protection, and monitoring needs. A conservative design may cost more initially, yet insufficient margin can shorten insulation life. Still, oversizing is not automatically wise. Low loading can reduce efficiency and weaken the business case. Recheck every assumption. Ask whether future conditions were measured or merely guessed. Compare compliant designs through lifetime losses, service access, testing needs, and outage consequences.

Determine the Required Capacity, Voltage Levels, and Load Profile

How to Choose a Power Station Transformer?

Selecting a Power Transformer starts with the required capacity. Review measured load data, not only the equipment nameplate ratings. Calculate connected load, demand factor, motor starting current, and expected expansion. A 10 MVA transformer may suit normal demand but struggle during simultaneous motor starts. Leave a practical margin, yet avoid excessive oversizing. An oversized unit can operate inefficiently at light load. Check ambient temperature, cooling method, altitude, and emergency loading limits before confirming the rating.

Voltage levels must match the incoming grid, generation equipment, and downstream distribution system. Confirm the primary and secondary voltages, frequency, insulation level, and tap-changing range. The load profile matters as much as peak demand. Plot hourly and seasonal consumption, then identify short, heavy peaks. Large motors, furnaces, and variable-speed drives can create voltage dips or harmonics. A site survey often reveals problems that spreadsheets miss. Still, load estimates can be imperfect and should be reviewed after commissioning data becomes available.

Tips: Compare weekday, weekend, and seasonal load curves. Check motor-starting conditions separately. Ask an independent engineer to verify protection settings, transformer impedance, and future capacity assumptions. Keep clear records of every calculation and field measurement.

How to Choose a Power Station Transformer?

Determine the required capacity, voltage levels, and load profile before selecting the transformer rating.

The chart compares representative power-system applications. Peak apparent load is calculated from active demand and power factor, while the selected transformer rating includes an operating margin for future growth and load variation. The voltage notation shows the typical high-voltage-to-medium-voltage transformation level.

Compare Transformer Designs, Cooling Methods, and Insulation Systems

How to Choose a Power Station Transformer?

Selecting an Hv Power Transformer starts with the station’s load profile, voltage level, and fault environment. A core-form design often simplifies manufacture and maintenance. A shell-form design can offer strong short-circuit resistance. The choice depends on system studies, not appearance. During site inspections, I check clearances, cable routes, lifting space, and access for oil sampling. A transformer that fits the specification may still be difficult to service.

Cooling performance directly affects reliability. ONAN cooling uses natural oil circulation and air movement. It suits moderate, steady loads with limited heat production. ONAF adds fans and radiators for higher demand. Forced oil circulation supports larger units, but it introduces pumps, controls, and more failure points. Dusty sites require careful radiator placement. Fan noise also matters near occupied buildings. Small details become expensive later.

Insulation deserves equal attention. Oil-paper systems provide proven dielectric strength, but moisture and heat accelerate aging. Sealed tanks can reduce contamination when designed correctly. Cast-resin insulation avoids liquid leaks, although thermal limits and partial discharge performance need close review. Test results should include winding resistance, insulation power factor, and partial discharge measurements. I would not trust one reading alone. Temperature history, oil condition, and installation quality can contradict a neat factory report. Some decisions remain imperfect, especially when budget pressure narrows the design margin.

Evaluate Efficiency, Reliability, Safety, and Environmental Performance

Choosing a power station transformer starts with the duty cycle, not the nameplate alone. An Oltc Power Transformer should match voltage ratio, tap range, short-circuit strength, and load variation. During commissioning, teams record winding temperature, oil moisture, sound, and tap-changer operation under load. Small details matter. The IEA estimates that 80 million kilometres of grids must be added or refurbished by 2040. This pressure makes maintainability a practical efficiency choice, not a brochure claim.

Compare no-load and load losses against the site's expected operating profile. The U.S. Department of Energy projected 3.63 quadrillion Btu of savings over thirty years from stronger transformer efficiency standards. However, distribution-transformer figures cannot be copied blindly to large station units. Require tested loss data, thermal curves, and tolerance limits from an accredited laboratory. Reliability also needs dissolved-gas analysis, bushing diagnostics, oil sampling, and spare-part planning. A redundant alarm is cheaper than a forced outage.

Safety reviews should cover fire separation, pressure relief, grounding, arc-flash boundaries, and oil containment. IEC 60076-7 links insulation life closely to hot-spot temperature through thermal ageing models. Keep hot spots controlled. Environmental scoring should include oil biodegradability, leak detection, noise, transport emissions, and end-of-life recovery. The IPCC’s Sixth Assessment Report gives SF6 a 100-year global-warming potential of about 25,200 times CO2. Use SF6 switchgear only when site constraints justify it. I would not trust one polished efficiency number. Seasonal loading, imperfect maintenance, and aging insulation can change the decision.

How to Choose a Power Station Transformer? - Evaluate Efficiency, Reliability, Safety, and Environmental Performance

Evaluation Dimension Key Metric Practical Benchmark or Target Recommended Verification Method Selection Significance
Electrical Efficiency Total efficiency at the expected operating load Typically 98.5%–99.7% for large power transformers at rated load Review guaranteed efficiency, load-loss data, no-load loss data, and the applicable type-test report Higher efficiency reduces lifetime energy losses, operating costs, and heat generation
No-Load Loss Core loss while the transformer is energized but unloaded Compare the guaranteed value in watts or kilowatts; lower values are preferable for continuously energized units Check factory test results performed according to IEC 60076-1 or IEEE C57.12.90 Important for transformers that remain energized for long periods, even at low demand
Load Loss Winding and stray losses at rated current Use guaranteed load-loss values corrected to the specified reference temperature Compare the loss capitalization method and the certified short-circuit impedance and load-loss test results Directly affects operating cost during peak and normal loading conditions
Voltage Regulation Change in secondary voltage from no-load to full-load operation Often approximately 5%–10%, depending on impedance, power factor, and system design Calculate regulation using the proposed impedance, resistance, reactance, and operating power factor Good regulation helps maintain stable voltage for generators, motors, and auxiliary equipment
Short-Circuit Impedance Transformer impedance expressed as a percentage Common power-transformer values are approximately 8%–20%; the correct value must match the fault-duty study Confirm compatibility with system fault current, voltage regulation, parallel operation, and protection settings Impacts fault current, voltage drop, system stability, and equipment interrupting requirements
Thermal Performance Top-oil rise, winding temperature rise, and hot-spot temperature Typical liquid-immersed designs use temperature-rise limits around 55 K or 65 K, subject to the specified standard and insulation system Review heat-run test results, thermal model assumptions, cooling-stage ratings, and hot-spot calculations Lower operating temperatures generally improve insulation life and overload capability
Overload Capability Permitted loading above nameplate rating for a defined duration Must be established from thermal limits; short-duration overload capability is application-specific rather than a universal percentage Request an overload curve based on ambient temperature, prior loading, cooling mode, and hot-spot limits Provides operational flexibility during peak demand, contingencies, and generator dispatch changes
Insulation Coordination Lightning impulse withstand, switching impulse withstand, and power-frequency withstand Select insulation levels according to the system maximum voltage, grounding method, altitude, and surge environment Verify the specified BIL or LI withstand level, clearances, surge-arrester coordination, and dielectric test certificates Reduces the risk of insulation breakdown caused by lightning and switching transients
Short-Circuit Mechanical Strength Ability of windings and clamping structures to withstand electromagnetic forces during faults Design and testing should comply with the applicable requirements of IEC 60076-5 or IEEE C57.12.00 Review short-circuit withstand calculations, design margins, and available short-circuit test evidence Prevents winding deformation and major internal damage during severe system faults
Insulation and Oil Condition Breakdown voltage, moisture, acidity, dielectric dissipation factor, and dissolved gases New insulating liquid should meet the specified standard; acceptance limits must be defined before commissioning Perform oil-receipt inspection, laboratory testing, vacuum filling checks, and baseline dissolved-gas analysis Early detection of moisture, overheating, arcing, and insulation degradation improves maintenance planning
Protection and Monitoring Detection of internal faults, overheating, oil level changes, and pressure events Typical systems include Buchholz or sudden-pressure protection, pressure relief, temperature indicators, oil-level indication, and alarms Check protection logic, alarm and trip setpoints, sensor redundancy, control wiring, and remote communication interfaces Fast detection limits damage, reduces fire risk, and supports condition-based maintenance
Fire and Personnel Safety Fire risk, oil containment, touch voltage, and accessibility of energized parts Use suitable fire barriers, bunding or oil containment, grounding, fencing, and safe working clearances Verify compliance with applicable electrical, fire-protection, grounding, and site-safety regulations Protects personnel, adjacent equipment, buildings, and critical station services
Reliability and Service Life Expected design life, maintenance requirements, and failure prevention features A properly specified and maintained power transformer is commonly designed for a service life of approximately 30–40 years Assess design margins, material traceability, quality-control records, maintenance intervals, and spare-parts availability Long service life improves asset utilization and reduces replacement and outage risks
Environmental Performance Energy losses, greenhouse-gas impact, fluid environmental risk, and noise Prefer low-loss designs, leak-resistant construction, effective containment, and verified sound levels at the site boundary Compare lifetime loss calculations, fluid safety data, noise-test results, leak tests, and end-of-life handling procedures Reduces operating emissions, spill consequences, community impact, and total lifecycle cost
Insulating Fluid Selection Mineral oil, ester fluid, or another approved insulating medium Select according to fire point, biodegradability, low-temperature performance, compatibility, and maintenance requirements Review fluid classification, fire-point data, environmental documentation, material compatibility, and filling procedures Fluid choice affects fire safety, environmental risk, cooling performance, and installation constraints
Noise and Vibration Sound pressure or sound power level under no-load and load conditions Set a site-specific limit; lower-noise designs are especially important near residential or occupied areas Review guaranteed sound level, measurement standard, enclosure requirements, and foundation or vibration-isolation design Controls nuisance, structural vibration, and potential complaints from nearby communities
Maintainability Access to bushings, tap changer, cooling equipment, valves, and inspection points Provide safe access, drain and sampling points, lifting provisions, isolation valves, and clear maintenance space Review general-arrangement drawings, maintenance procedures, outage requirements, and replacement-part lead times Shorter maintenance outages and better accessibility improve availability and reduce service risk
Tap-Changer Performance Tap range, switching duty, transition method, and maintenance interval Common on-load tap ranges are approximately ±10% to ±15%, but the required range depends on the network voltage profile Confirm tap-changer duty, voltage-control scheme, number of operations, oil compartment arrangement, and test records Maintains voltage quality while system load and generation conditions change
Standards and Testing Compliance with recognized design, routine-test, and type-test requirements Common references include IEC 60076, IEEE C57 series, and applicable local grid or utility requirements Check the compliance matrix, routine-test reports, type-test evidence, drawings, calculations, and inspection plan Independent standards provide a consistent basis for safety, performance, and quality acceptance
Total Cost of Ownership Purchase price plus capitalization of losses, maintenance, downtime, and end-of-life costs Evaluate at least the planned service life, commonly 30 years or more for a major station transformer Use a lifecycle-cost model covering no-load loss, load loss, energy price, load profile, maintenance, and outage consequences The lowest purchase price may not provide the lowest long-term cost or best operational value

Check Site Conditions, Grid Standards, Protection, and Maintenance Needs

How to Choose a Power Station Transformer?

Site conditions should guide the transformer choice from the beginning. Record ambient temperature, altitude, humidity, dust, salt exposure, and available installation space. A coastal substation may need stronger corrosion protection and sealed components. High-altitude sites can require derating because thinner air reduces cooling efficiency. Check soil stability and seismic conditions before selecting the tank and foundation design. I have seen projects focus on rated power while overlooking cable access and crane clearance. That mistake can delay installation.

Grid standards must match the transformer’s electrical design. Verify voltage, frequency, insulation level, vector group, impedance, and short-circuit requirements. Confirm whether local rules require IEC, IEEE, or another recognized standard. Protection should include suitable differential, overcurrent, earth-fault, and temperature functions. Surge arresters are important where lightning exposure is high. Carefully coordinate relay settings with upstream and downstream equipment. Small errors matter.

Maintenance needs should influence the purchase, not follow it. Ask for oil sampling points, inspection access, spare-part availability, and clear test procedures. Online temperature and dissolved-gas monitoring can reveal developing faults earlier. Cooling fans and pumps should be easy to isolate and replace. Keep maintenance records from commissioning onward. In practice, teams sometimes over-specify monitoring but undertrain operators. That balance deserves review. A technically excellent transformer still fails operationally when alarms are misunderstood or inspections are skipped.

Assess Suppliers, Total Cost, Delivery Requirements, and Lifecycle Value

Choosing a power station transformer requires more than comparing purchase prices. Supplier evaluation should include factory experience, test capability, financial stability, and documented failure rates. Request type-test records, routine-test procedures, and references from projects with similar voltage and load profiles. The International Energy Agency reported that annual global grid investment may need to exceed 600 billion dollars by 2030, increasing pressure on transformer manufacturing capacity (IEA, Electricity Grids and Secure Energy Transitions, 2023). A low-cost supplier may therefore offer longer queues or weaker technical support.

Delivery requirements must be written into the contract. Confirm design approval dates, factory acceptance testing, shipping dimensions, spare-parts availability, and penalties for delays. The U.S. Department of Energy has reported that large power transformer lead times can extend beyond 20 months during supply shortages (DOE, Transformer Supply Chain Review, 2022). Protect the schedule with progress inspections and an approved manufacturing plan. Details matter.

Total cost should include transport, civil works, installation, oil handling, testing, losses, maintenance, and eventual disposal. IEC 60076-7 links transformer temperature to insulation aging, so cooling performance directly affects service life. IEEE loading guidance also supports controlled overloading, but repeated thermal stress can accelerate deterioration. A transformer with slightly higher purchase cost may reduce energy losses for decades. A spreadsheet can still lie. Recheck assumptions using realistic load curves, local electricity prices, and outage costs. Performance guarantees should cover efficiency, noise, temperature rise, and short-circuit strength. Suppliers should explain every exclusion clearly.

FAQS

How should I determine the transformer’s required capacity?

Use measured load data, not only equipment nameplates. Calculate connected load, demand factor, motor-starting current, and planned expansion. Leave a practical margin. Avoid excessive oversizing.

Why can a transformer with enough rated capacity still struggle?

Simultaneous motor starts can create short, heavy demand peaks. Large motors may cause voltage dips. A 10 MVA unit may need more starting support.

Which voltage details must be confirmed before ordering?

Confirm primary voltage, secondary voltage, frequency, insulation level, and tap-changing range. These values must match the grid and downstream equipment.

How does the load profile affect transformer selection?

Review weekday, weekend, and seasonal curves. Identify short peaks, furnace cycles, and variable-speed drive activity. Spreadsheets can miss real site conditions.

What site conditions can change the transformer rating?

Ambient temperature, altitude, cooling method, emergency loading, and installation space all matter. Hot conditions can reduce safe loading capability.

How can efficiency be evaluated realistically?

Compare no-load and load losses with actual operating patterns. Request tested loss data, thermal curves, and tolerance limits. One polished number is not enough.

Which reliability checks should be included?

Plan oil sampling, dissolved-gas analysis, bushing checks, temperature recording, and tap-changer inspections. Keep critical spare parts available. Small alarms can prevent large outages.

What safety and environmental features deserve attention?

Review fire separation, grounding, pressure relief, arc-flash boundaries, and oil containment. Consider leak detection, noise, biodegradable oil, transport emissions, and end-of-life recovery.

How should suppliers and total costs be compared?

Check test capability, manufacturing records, financial stability, failure history, and similar project references. Include transport, installation, losses, maintenance, and disposal costs. Cheap is not always cheaper.

Conclusion

Choosing the right Power Station Transformer requires a clear understanding of its role, operating environment, and connection within the power system. Start by defining whether it will serve as a generator step-up, auxiliary, or station service transformer, then determine the required capacity, voltage levels, short-circuit strength, and expected load profile. Consider future expansion, fluctuating demand, and emergency operating conditions to avoid under- or oversized equipment.

Next, compare suitable transformer designs, cooling methods, insulation systems, and protection features. Efficiency, reliability, safety, noise control, fire resistance, and environmental performance should all be evaluated alongside site conditions such as temperature, altitude, humidity, space, and installation access. Confirm compliance with applicable grid standards and review monitoring, testing, maintenance, and spare-part requirements. Finally, assess suppliers by technical capability, quality control, delivery schedule, warranty support, total ownership cost, and expected service life. A well-balanced decision will provide dependable operation, manageable maintenance, and strong lifecycle value.
