Picking out the right Transmission Transformer isn’t just some technical detail—it's a big deal for any high-voltage power setup. You’ve got to find one that matches the voltage levels, load patterns, fault scenarios, cooling needs, and the space you have to work with. Honestly, something that looks great on paper can turn out to be a real headache once it's out in the field—dusty substations, repeated overloads, you name it. Real-world conditions, in the end, are what really matter.
Martin J. Heathcote, who wrote The J & P Transformer Book, famously called transformers “the backbone of the electricity supply system.” And honestly, that’s still true today. A Transmission Transformer carries a huge load—connecting power plants, substations, and regional grids. Its design choices can impact everything: how efficient it is, how stable the whole system stays, how much you'll spend on maintenance, and ultimately, how reliable your power supply is for people.
This guide aims to cut through the marketing talk and focus on what really matters—engineering facts. We’re looking at things like rated power, impedance, insulation standards, tap changers, cooling styles, noise levels, fire safety features, and even how easy it is to transport. You’ll want to keep IEC 60076 standards in mind, but also check manufacturer records and get some on-site measurements to be sure. Big players like Hitachi Energy, Siemens Energy, and GE Vernova all have their own approaches, so it’s worth exploring their service options and monitoring tools.
And here’s a little truth bomb: the cheapest transformer isn’t always the most economical choice in the long run. Nor is the biggest one necessarily the safest. When making your decision, consider total lifecycle costs—not just the purchase price. Regular oil testing, dissolved gas analysis, and online temperature monitoring can catch problems early, but keep in mind—they aren’t replacements for having experienced folks inspect the equipment regularly.
Let’s be honest, some choices are downright tough. Maybe you're worried about future demand—not sure if it’ll grow faster than you expect. Or climate change might shake things up. Because of all this, it’s smart to plan for some extra capacity, look at verified documentation, and have a realistic maintenance plan in place. There’s no perfect checklist, but a good starting point is asking tough questions about your initial design assumptions—that’s where a solid Transmission Transformer begins.
Define the Transformer’s Role in the Transmission Network

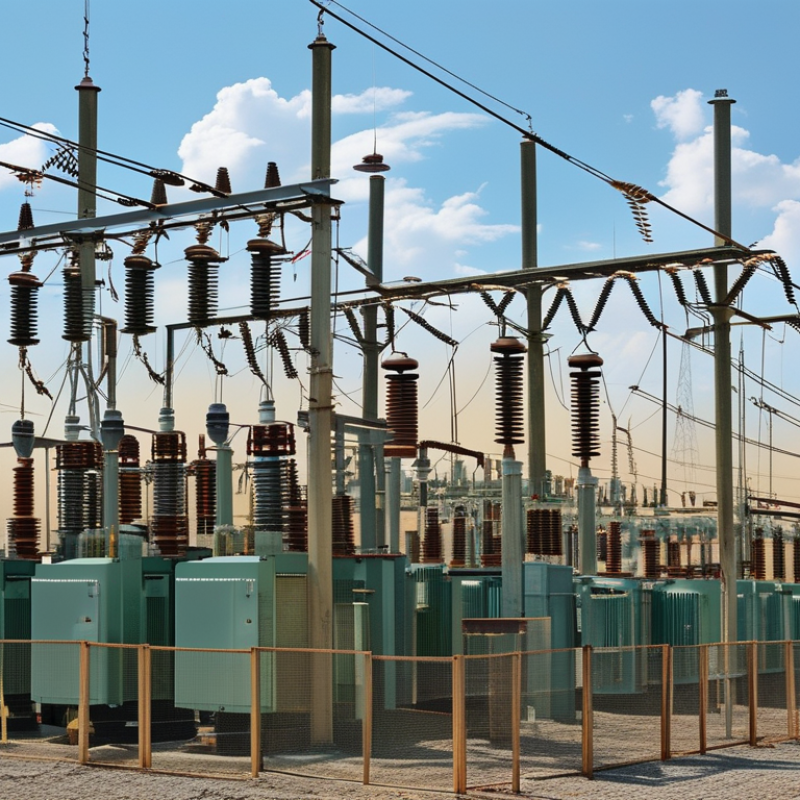

How to Choose a Transmission Transformer?
Define the Transformer’s Role in the Transmission Network
A transmission transformer is not merely a voltage-changing device. It controls how electrical power enters, leaves, and moves through the network. Before comparing specifications, identify its exact grid position. A substation transformer may raise generator voltage for long-distance transfer. Another unit may reduce voltage before distribution begins. The role determines nearly every later decision.
At the connection point, engineers study rated power, voltage ratio, frequency, insulation level, and short-circuit strength. A Transmission Line Transformer must also handle changing load patterns without excessive heating. For example, a 220 kV network may experience sharp demand changes during evening peaks. The transformer needs suitable cooling, tap-changing capability, and fault withstand strength. These details are practical, not decorative.
Field experience shows that operating conditions often differ from planning estimates. Ambient temperature, harmonics, and delayed maintenance can reduce expected service life. Do not rely on nameplate capacity alone. Review measured load records, protection settings, and site clearances with qualified engineers. International technical standards can guide testing and insulation coordination. Still, local network data deserves serious attention. One design may look efficient on paper yet perform poorly beside a weak transmission line. That possibility should remain open during evaluation.
Determine Voltage, Power, and Load Requirements
How to Choose a Transmission Transformer?
Voltage selection begins with the transmission system, not the transformer catalogue. Confirm the highest system voltage, operating voltage, insulation level, and grounding arrangement. The transformer’s ratio must match normal conditions and expected future changes. Tap changers can correct voltage variation, but they cannot repair an incorrect system design. IEC 60076 provides the core framework for power transformer testing and performance. Use it with utility fault studies and grid-connection requirements.
Power rating should reflect real load behavior. Convert forecast demand into MVA using power factor, then examine daily peaks, seasonal demand, and future generation. A transformer running near its limit may suffer accelerated insulation aging. A large unit, however, increases cost, losses, and transport difficulty. The International Energy Agency’s Electricity 2024 report expects global electricity demand to rise by about 4% in 2024. Its forecast also shows continued growth through 2026. That makes spare capacity important, but not unlimited.
Load analysis must include motor starting, harmonics, renewable intermittency, and emergency overloads. Record actual feeder data when possible. A spreadsheet can still lie. Compare measured temperatures with the transformer’s thermal model, especially during summer peaks. The U.S. Department of Energy’s 2024 Transformer Supply Chain Review notes extended lead times for large transformers. Therefore, specify cooling stages, impedance, short-circuit strength, sound limits, and loss guarantees early. I would also test the failure scenario: if one unit trips, can the remaining equipment carry essential loads safely? That question often exposes an optimistic design.
Compare Transformer Designs and Cooling Methods
Choosing a Transformer Transmission Line unit starts with load profile, voltage class, fault duty, and site conditions. Core-type designs offer simpler manufacturing and easier maintenance. Shell-type designs can provide strong short-circuit support, but repairs may be more complex. For high-voltage transmission, oil-immersed transformers remain common because oil transfers heat and supports insulation. IEC 60076 testing should verify temperature rise, impulse withstand, losses, and sound performance.
Cooling changes both capacity and operating risk. ONAN cooling uses natural oil and air, with fewer moving parts. ONAF adds fans and usually increases available output during peak demand. OFAF uses pumps, giving stronger heat removal but introducing controls, seals, and failure points. CIGRE technical guidance stresses that thermal ageing depends heavily on hot-spot temperature, not only average oil temperature. The IEA’s Electricity Grids and Secure Energy Transitions report says annual grid investment must exceed 600 billion dollars by 2030. Efficient transformers can support that expansion, although efficiency alone cannot solve weak networks.
Tips: Compare no-load and load losses at the actual duty cycle. Inspect fan redundancy, radiator cleanliness, oil moisture, and alarm settings. Leave space around coolers for airflow. A spreadsheet can still mislead. Field measurements matter. I would also question oversized units; low loading can reduce losses, yet it may increase capital cost and transport difficulty. Consider ambient temperature, altitude, harmonics, and future renewable connections before selecting ONAN, ONAF, or OFAF. The best design is not always the highest-rated one.
Evaluate Insulation, Efficiency, and Operating Performance
Choosing a Grid Transmission Transformer requires more than comparing rated capacity and purchase price. Insulation, efficiency, and operating performance determine whether the unit remains dependable under daily electrical stress.
Start by checking the insulation system and its test records. The transformer should withstand specified voltage levels, switching surges, and temperature changes. Ask for results from partial discharge, impulse, and temperature-rise tests. Examine the insulation material, clearances, sealing, and moisture protection. A small moisture problem can weaken insulation over time. This detail is easy to underestimate.
Efficiency affects both energy costs and operating temperature. Review no-load losses, load losses, impedance, and the expected load profile. A transformer operating at light load needs low core losses, while a heavily loaded unit needs controlled winding losses. During site evaluation, inspect oil temperature, cooling fans, bushings, and noise levels. Stable readings matter. Sudden changes matter more. Use monitoring equipment with verified calibration and compare results against IEC or IEEE requirements. Real operating data often reveals weaknesses that factory documents cannot show. I have seen maintenance teams trust a clean test sheet while overlooking loose connections and poor ventilation. That mistake deserves reflection. A reliable selection also considers short-circuit strength, overload capability, tap-changer performance, and access for maintenance. The best design is not always the largest one. It must match the grid, climate, duty cycle, and available maintenance skills.
Check Site Conditions, Safety, and Maintenance Needs
How to Choose a Transmission Transformer?
Check Site Conditions, Safety, and Maintenance Needs
A transmission transformer should fit the site, not just the planned voltage and capacity. Check altitude, ambient temperature, humidity, soil stability, flooding risk, and available space. Coastal air may accelerate corrosion, while dust can restrict cooling surfaces. Measure access roads carefully. A large transformer needs safe delivery, lifting, and emergency access.
Safety requirements deserve early attention. Confirm insulation clearances, grounding design, fire separation, drainage, and protection systems with qualified engineers. For oil-filled units, consider leak detection and suitable containment. Workers also need clear isolation points, warning signs, and practical access for testing. A design that looks safe on paper may become difficult during a night-time fault.
Maintenance needs should influence the selection before purchase. Review inspection intervals, oil sampling access, bushing condition checks, temperature monitoring, and spare-part availability. Ask how technicians will reach fans, radiators, tap changers, and control cabinets. I once underestimated maintenance space around a transformer; routine testing later required extra lifting equipment. That mistake was avoidable.
Keep accurate records of load history, alarms, test results, and repairs. These records help identify overheating, moisture entry, or unusual vibration before failure. Choose monitoring features that match local skills and response times. More sensors are not always better. If nobody reviews the data, complexity becomes another risk. Reliability depends on disciplined maintenance, realistic procedures, and honest site assessment.
How to Choose a Transmission Transformer?
Check site conditions, safety, and maintenance needs before selecting the transformer design. The chart shows normal service-condition reference values from IEC 60076-1; projects outside these conditions may require a special design review.
Safety and maintenance: Confirm clearances, grounding, protection systems, fire-risk controls, access for inspection, oil containment requirements, cooling conditions, and the availability of qualified maintenance personnel.
Assess Standards, Costs, and Supplier Support
Choosing a 220kv Transmission Transformer requires more than comparing nameplate prices. Standards, lifecycle costs, and supplier support can determine whether the asset performs reliably for decades.
Start with applicable requirements, including IEC 60076 or IEEE C57 series standards. Confirm insulation levels, temperature rise, short-circuit strength, noise limits, and factory test procedures. The International Energy Agency reported in Electricity Grids and Secure Energy Transitions that annual global grid investment must rise to nearly USD 600 billion by 2030. This pressure makes dependable transformer procurement increasingly important. A quotation without documented routine and type-test evidence deserves careful review.
Purchase price is only one cost. Include transport, oil handling, installation, losses, maintenance, spare parts, and possible outage exposure. Ask suppliers to provide guaranteed no-load and load losses, then compare lifetime energy costs using your actual load profile. A lower bid may become expensive after years of avoidable losses. Sometimes, the “cheapest” option is not cheap.
Supplier support should be tested before signing. Check engineering response times, local service coverage, emergency repair plans, critical spares, and warranty exclusions. The U.S. Department of Energy has highlighted long lead times and supply-chain constraints affecting large power transformers. Therefore, request a realistic manufacturing schedule, inspection hold points, and progress documentation. Visit a comparable factory if possible. Paperwork can look perfect. Field experience is less tidy. Ask how the supplier handled a failed bushing, delayed delivery, or incomplete test record. Their answer may reveal more than a polished presentation.
FAQS
It changes voltage and controls how power enters, leaves, and moves through the network. Its exact substation position guides later design choices.
Check rated power, voltage ratio, frequency, insulation level, and short-circuit strength. These details must match the connection point and network conditions.
Planning estimates may miss evening peaks, harmonics, or sudden demand changes. Review actual load history before accepting nameplate capacity.
Suitable cooling, tap-changing capability, and fault withstand strength may be required. A 220 kV network can demand fast response during evening peaks.
Review altitude, temperature, humidity, soil stability, flooding risk, and available space. Coastal air can accelerate corrosion. Dust can restrict cooling.
Confirm insulation clearances, grounding, fire separation, drainage, and protection systems. Oil-filled units may need leak detection and containment.
Technicians need practical access to fans, radiators, bushings, tap changers, and control cabinets. Tight spaces can require extra lifting equipment later.
No. Sensors help only when trained staff review the data and respond promptly. More complexity may become another risk.
Keep load history, alarms, test results, oil samples, and repair records. These details can reveal overheating, moisture entry, or unusual vibration.
Yes. A paper design can fail beside a weak transmission line or under difficult site conditions. That possibility deserves honest review.
Conclusion
Choosing the right Transmission Transformer begins with understanding its role in the transmission network, including the voltage levels, power capacity, load profile, and expected operating conditions. These factors determine the transformer’s size, configuration, phase arrangement, and ability to manage present and future demand. Buyers should also compare suitable designs and cooling methods, considering how each option affects reliability, efficiency, noise, space requirements, and performance under continuous or changing loads.
A complete evaluation should include insulation quality, energy efficiency, temperature control, short-circuit strength, and long-term operating stability. Site conditions such as climate, altitude, installation space, fire protection, accessibility, and environmental exposure are equally important. Maintenance requirements, monitoring features, safety provisions, applicable technical standards, total ownership cost, delivery capabilities, warranty terms, and supplier support should also be reviewed. By assessing these areas together, organizations can select a dependable transformer that balances performance, lifecycle value, operational safety, and future expansion needs.
