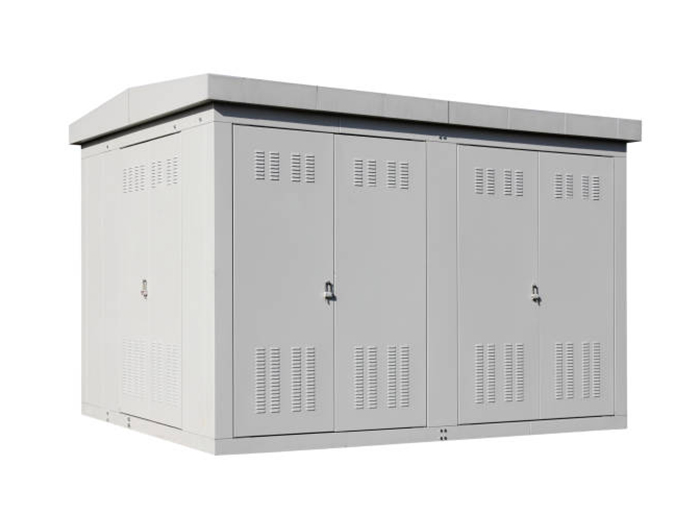

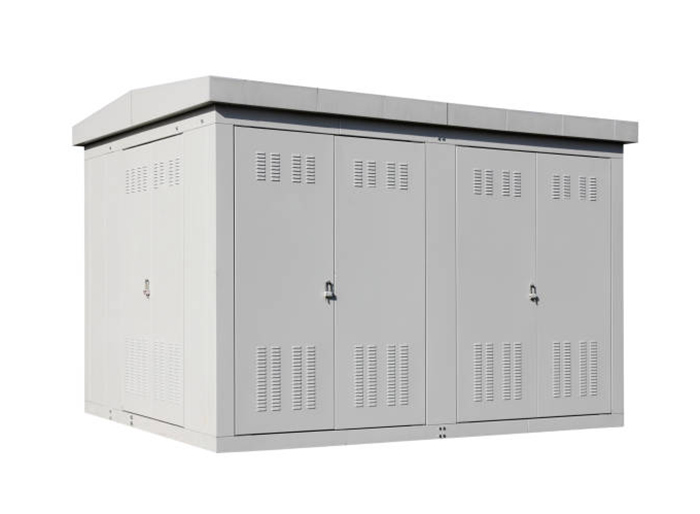

Integrated Prefabricated Compact Power Substation
Scope of Application
New Energy Power Plant
Match centralized wind and photovoltaic power stations for centralized power collection and boosting.
Urban Community Power Supply
Suitable for residential quarters, commercial plazas and rail transit with strict fire safety requirements.
Mining & Industrial Park
Stable power supply solution for chemical, metallurgical and heavy-duty mining production bases.
Product Description
-
1 - Integrated three-room independent partition structure to avoid electrical interference between components.
-
2 - Customized oil-immersed or dry-type transformer options for different project fire protection demands.
-
3 - Complete set of overload, short circuit, lightning and over-temperature intelligent protection functions.
-
4 - Multi-layer anti-corrosion steel shell with built-in dehumidifier for long-term outdoor operation.
-
5 - All electrical components pre-installed in factory, greatly shortening on-site construction cycle.
-
6 - Reserved communication interface supports remote real-time monitoring and fault early warning.
description1
description2
The ZBW1 series compact substation features a compact structure, safe and reliable operation, convenient and safe maintenance, an aesthetically pleasing appearance, high mobility, and a small footprint. It is suitable for use in power distribution systems utilizing either ring-main or dual-source radial terminal power supply configurations. This mobile substation represents a new type of complete equipment solution for the construction and renovation of urban and rural substations, helping to reduce overall operating costs.
Main parameters
Rated Voltage & Capacity: 35kV/10kV, 10kV/0.4kV; capacity range 300kVA–35000kVA customizable
Transformer Type: Optional ONAN oil immersed transformer / epoxy cast dry type transformer
Cabinet Protection Grade: Standard IP54, support customized IP55 for coastal high salt fog areas
Communication Interface: Modbus RTU/TCP, IEC61850 compatible with centralized power monitoring platform
Execution standards
Technical advantages
We manufacture this power transformer and distribution unit, which integrates high-voltage transformers with low-voltage equipment. These prefabricated substations are suitable for a wide range of applications, including high-rise buildings, urban and rural developments, residential communities, small-to-medium-sized factories, mines, oilfields, and temporary power supply sites. They serve to receive and distribute power within the electrical distribution system. Our mobile substations offer a convenient, flexible, and cost-effective solution for your power distribution needs. Please feel free to contact us if you are interested!
