ZN Type Zigzag Neutral Earthing Transformer 10kV 35kV
Scope of Application
Photovoltaic Step-Up Stations
Used to provide a neutral grounding path for inverter-side faults, limiting fault current and enabling rapid protection isolation.
Package Substations
Integrated into compact prefabricated units to establish a stable neutral ground while suppressing harmonics and transient overvoltages in outdoor environments.
Industrial Power Supply Systems
Employed in resistor- or reactor-grounded systems to control single-phase fault current amplitude and ensure reliable relay protection for continuous production operations.
Product Description
-
1 - We utilize a Zn (zigzag) winding configuration, which offers high zero-sequence impedance and low positive-sequence impedance, ensuring no disruption to the system's normal power supply.
-
2 - Our design achieves excellent performance with low losses, minimal temperature rise, and low operating noise.
-
3 - We employ an enhanced insulation class to ensure high resistance to lightning strikes and switching overvoltages, making the transformers suitable for PV box-type booster stations and prefabricated substations.
-

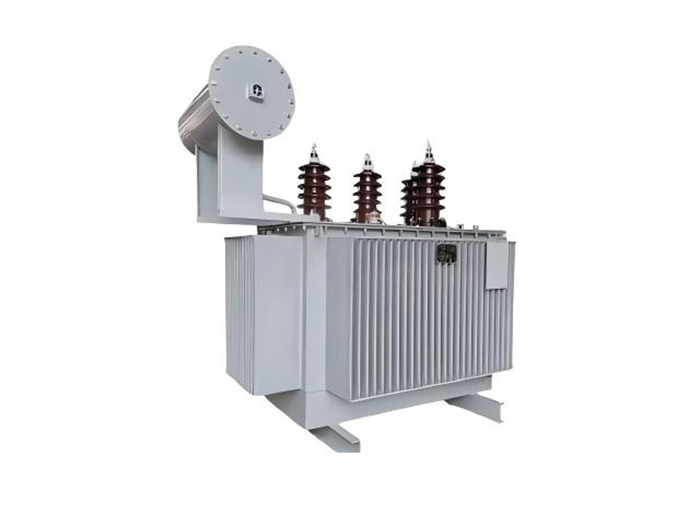

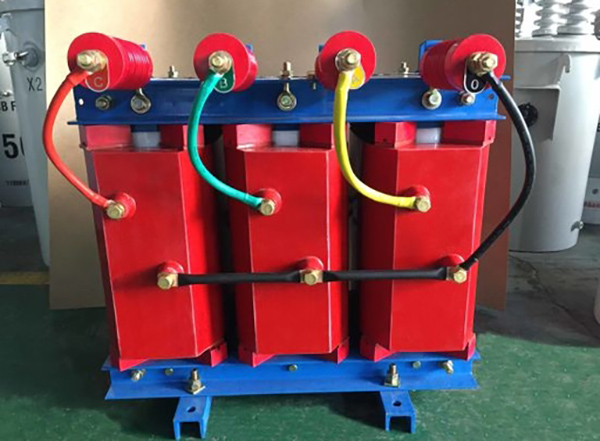

4 - Both oil-immersed and dry-type designs are available, with protection ratings customizable to specific requirements.
description1
description2
Main parameters
Voltage ratings: 10 kV, 35 kV
Standard capacities: 50 kVA, 100 kVA, 160 kVA, 200 kVA, 315 kVA, etc.
Vector group: ZNyn11
Execution standards
Technical advantages
Hanzhong Xinsanhuan Transformer Co., Ltd. possesses significant competitive advantages in the field of wind power box-type substations. Backed by extensive technical expertise and comprehensive industry certifications—including CE marking, energy-saving certification, and national-level type testing—we offer products of proven quality that you can fully trust. We have accumulated a wealth of project experience through long-term partnerships with major energy enterprises, supplying complete equipment sets to wind farms across China and in countries such as Russia and Chile. Recognizing that wind power projects are often situated in harsh environments—such as high-altitude or coastal regions—we have engineered our products with enhanced sealing and corrosion resistance (achieving an IP54 protection rating) to ensure reliable long-term outdoor operation. Furthermore, through the continuous optimization of core materials and electromagnetic designs, we effectively minimize losses and maximize wind energy utilization efficiency. Please feel free to contact us at any time.
